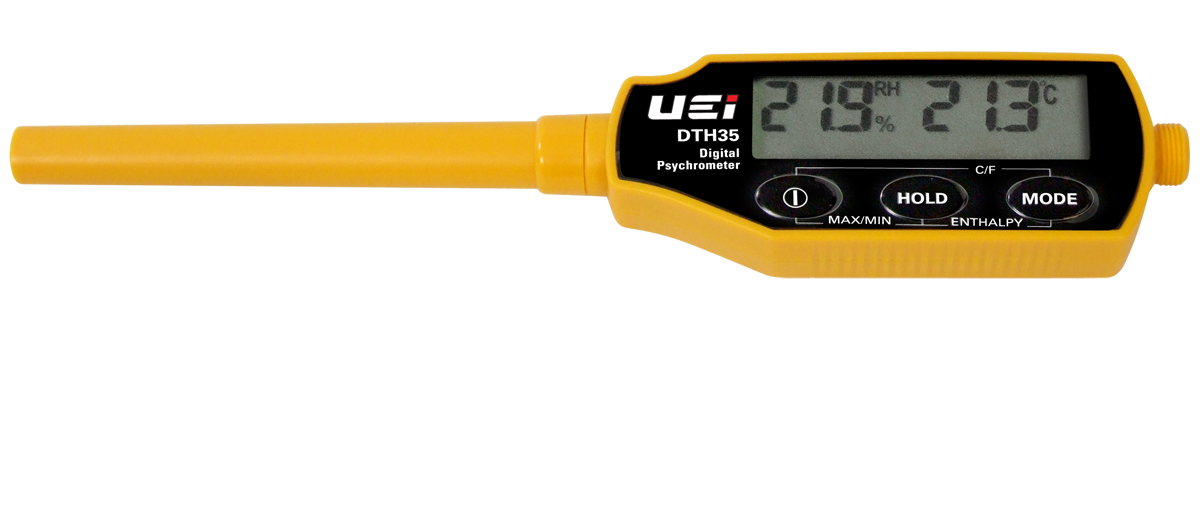

UEI DTH35 Digital In Duct Psychrometer

The DTH35 Digital Psychrometer measures temperature, relative humidity, and calculates wet bulb, dew point, and enthalpy of moist air (air with humidity). The housing design is useful for in-duct measurement, as well as ambient or vent outlet applications. A large, easy to read display, and built in magnet improves ease of use.

Features

• Large-digit back-lit display
• Designed for in-duct measurement (4" x 3/8" probe dimensions)
• Magnetic mount for hands free use.
• Probe cover functions as an extension for hard to reach areas

Specifications

• Temperature Range: -4 to 122ºF (-20 to 50ºC)
• RH% Range: 0 to 99.9% RH%
• Wet Bulb: 5 to 121.8ºF (-15 to 49.9ºC)
• Dew Point: -4 to 121.85ºF (-20 to 49.9ºC)
• Enthalpy 0 to 125 BTU/Lb (0 to 292 KJ/KG)

Accuracy

• Temperature ±1.0ºF (±0.6ºC)
• RH% ±3% at 77ºF (25ºC), 10-90%RH
• Response Time 60 seconds typical for stable reading
