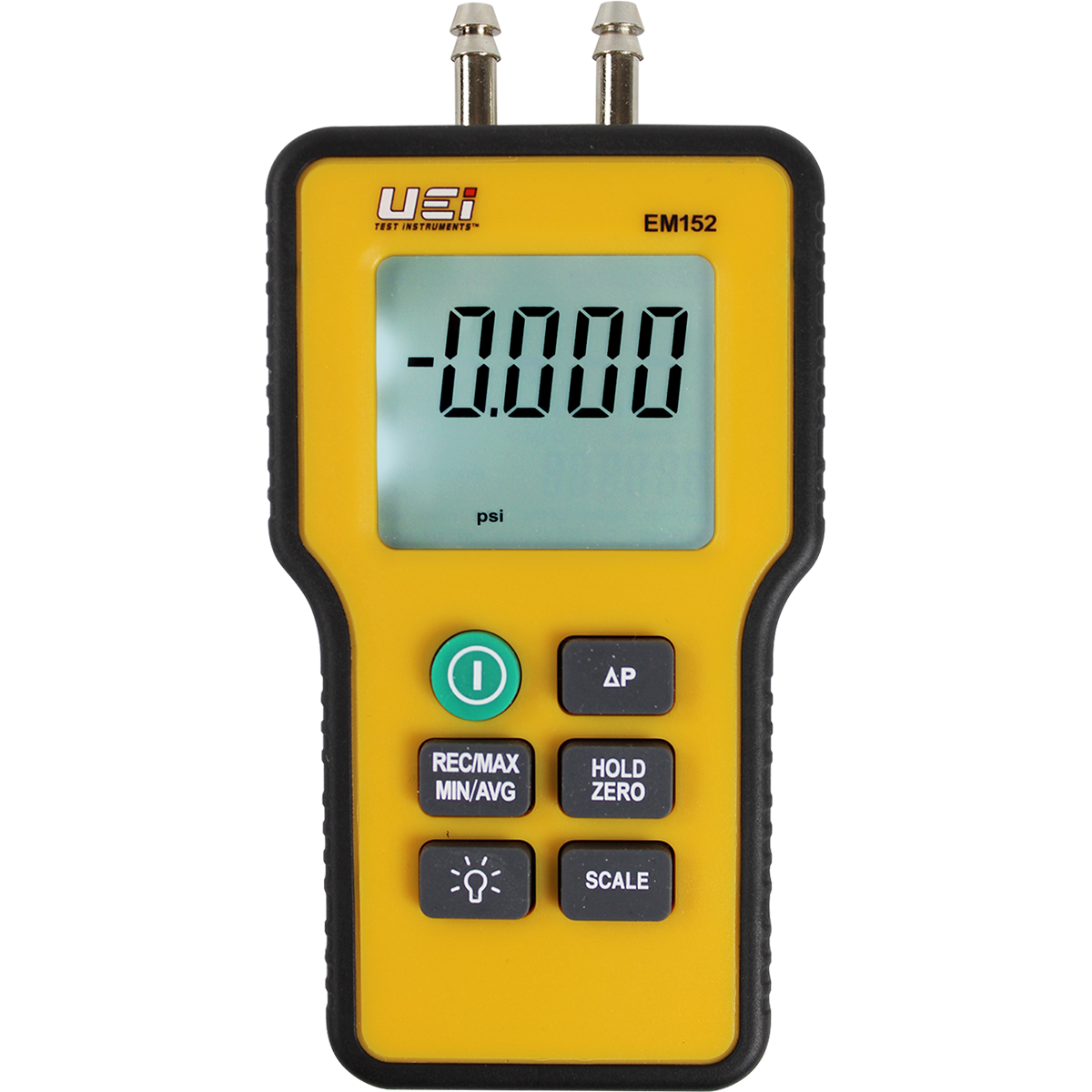

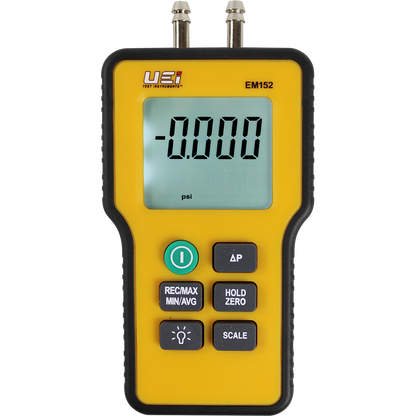

UEI EM152 Dual Differential Digital Manometer

UEI EM152 Dual Differential Digital Manometer

The EM152 differential pressure manometer replaces the EM151 with additional features and the same professional accuracy. The EM152 offers the same features as the previous model with nice upgrades besides the dual input differential. The range was increased to -60 to +60 inH20 (from -20 to +20 in H20). Users now have 11 scales to choose from, over the 3 scales in the previous model. The EM152 also features an easy-to-read high contrast backlit display, MIN/MAX, and a bulit in magnet for hands-free work.

Functions:

• Range of -60 to +60 inH2O

• Differential Pressure

Features:

• Dual input differential measurement up to 80.27 inches of water column within range

• Measures in 11 scales; inH2O, psi, bar, mBar, kPa, inHG, mmHG, ozin, FtH2O, cmH2O and kgcm.

• Magnetic mount

• Auto ranging

• Backlit display

• Data hold

• Max/Min

• Zero button

• 1-Year limited warranty

Applications:

• Validate pressures in accordance with equipment manufacturer’s specification for optimal system efficiency and safety.

• Measure draft, gas supply, manifold or burner pressures

• Dual input offers users the ability to measure pressure drops across heat exchangers, cooling coils, supply and return registers and filters

Features:

• Dual input differential in 11 scales

• Hold/Min/Max/Avg

• Record with elapsed time stamp

• Pressure zero

• Backlit display

• Relative time clock

• Low battery indicator

• Auto power off

• Magnetic mount

Product Includes:

• Flexible transparent silicone tubing (2) 18" length 1/4" diameter

• Barbed gas valve fitting (2)

• Soft pouch (7.48" x 4.33" x 1.96")

• Manual

• Battery

Optional Accessories Available for Purchase:
