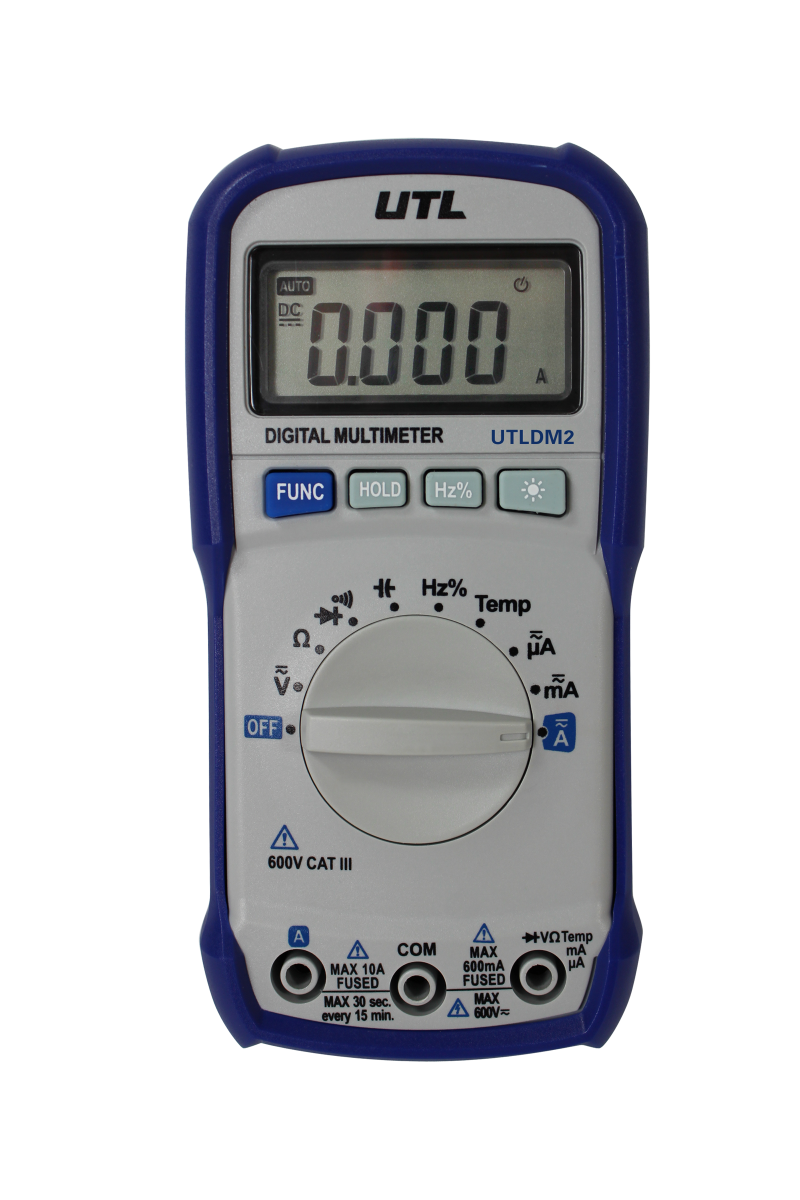

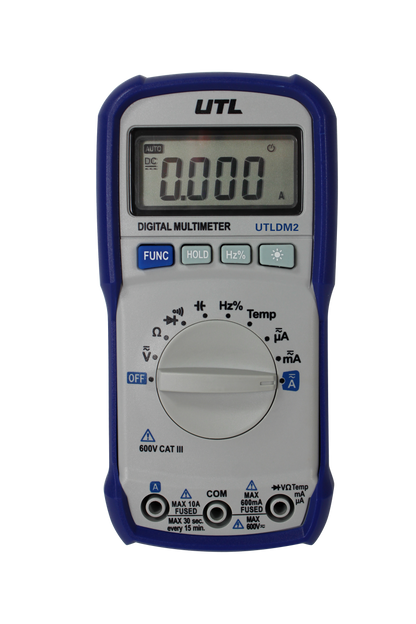

UEI UTLDM2 Auto Ranging Digital Multimeter
UEI UTLDM2 Auto Ranging Digital Multimeter
No reviews
Regular price
$42.21 USD
Regular price
Sale price
$42.21 USD
Unit price
/
per
Features
- CAT III 600V
- C-ETL-US Certification
- 6000 count display
- Auto Ranging
- 600V AC/DC
- 10A DC
- 1 Year Limited Warranty
- DC Voltage 600mV ~ 600V
- AC Voltage 6V ~ 600V
- AC/DC Current 600μA ~ 10A
- Resistance 600Ω ~ 60MΩ
- Frequency 9.999Hz ~ 10MHz
- Duty Cycle 0.1 ~ 99.9%
- Capacitance 6nF ~ 60mF
- Diode
- Temperature -4ºF ~ 1832ºF
- Continuity
General Specifications
- Operating Category: 600V CAT III, pollution degree: 2.
- Operating Elevation (< 2000m)
- Operating Conditions: 32~104ºF(0~40ºC), <80% RH (do not use meter when temperature <10ºC).
- Storage Conditions: 14~140ºF (-10~60ºC), <70% RH (remove the battery).
- Temperature Coefficient: 1xAccuracy/ºC (<18ºC or >28ºC).
- Maximum Voltage between measurement end and ground: 600V DC or 600V AC RMS.
- Fuse productions: mA Grade: fuse F600mA/600V and 10A Grade: fuse F10A/600V
- Sampling rate: about 3 times/second
- Display: 3 3/4 bits of digit LCD display
- Power supply: 9V battery
- Digital Multimeter
- Test Leads
- Thermocouple
- 9V Battery
- Manual
