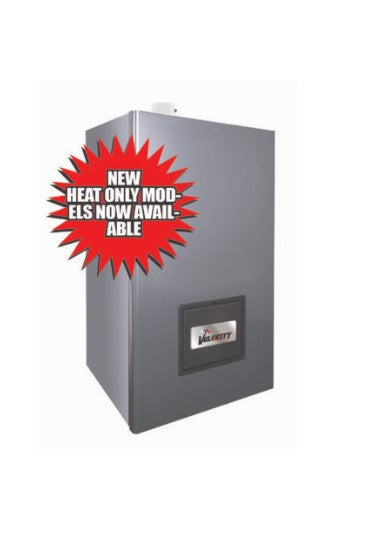

Velocity PHTM2120H 120K Phantom II Boiler
Velocity PHTM2120H 120K Phantom II Boiler
Regular price
$2,641.28 USD
Regular price
Sale price
$2,641.28 USD
Unit price
per
| Type: | Residential |
| Heat Exchanger: | Stainless Steel |
| Fuel: | Gas Fired (Natural Gas or LP) |
| Heating Input: | 13.6-120/20-150/20-180 MBH |
| Efficiency (AFUE) | 95% |
| Venting: | Direct Vent |
| Ignition: | Direct Spark |
| Trim: | Water |
| Domestic Water: | N/A |
| Burner: | Modulating with 10:1 turndown ratio |
| Configuration: | Packaged |
Space Heating Ratings  | |||||
| Model Number | Input1 (MBH) Min-Max |
DOE Heating Capacity (MBH) | AHRI Net Rating2 (MBH) | AFUE | Shipping Weight (lbs) |
| PHNTM2120H | 13.6-120 | 112 | 97 | 95.0 | 112 |
| PHNTM2150H | 20-150 | 141 | 123 | 95.0 | 132 |
| PHNTM2180H | 20-180 | 169 | 147 | 95.0 | 132 |
| MODEL NUMBER | DEPTH (INCHES) | HEIGHT (INCHES) | WIDTH (INCHES) |
| PHNTM2120H | 16.3 | 29.8 | 17.8 |
| PHNTM2150H | 20.4 | 29.8 | 17.8 |
| PHNTM2180H | 20.4 | 29.8 | 17.8 |

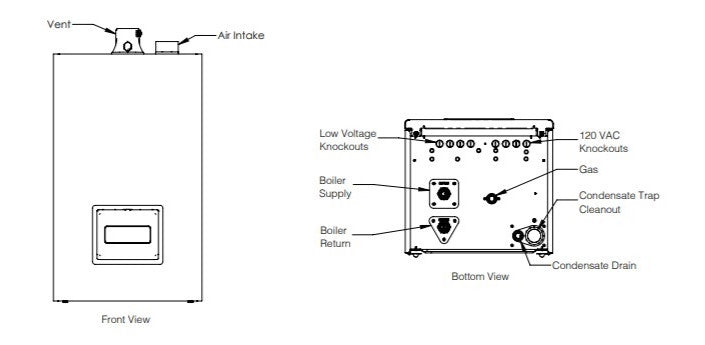

| CONNECTION SIZE | |
| SUPPLY/RETURN | 1-1/4″ MPT |
| DHW | 3/4″ MPT |
| GAS | 1/2″ MPT |
| VENT | 2″ STD (3″ w/increaser) |
