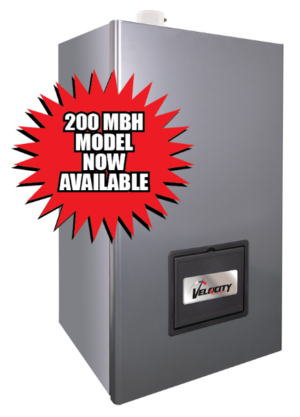

Velocity PHTM2200C Phantom Combi II Boiler
Velocity PHTM2200C Phantom Combi II Boiler
Regular price
$3,232.19 USD
Regular price
Sale price
$3,232.19 USD
Unit price
per
| Type: | Residential |
| Heat Exchanger: | Stainless Steel |
| Fuel: | Gas Fired (Natural Gas or LP) |
| Heating Input: | 13.6-120/20-150 MBH |
| Maximum Domestic Hot Water Input: | 136/200 MBH |
| Efficiency (AFUE) | 95% |
| Venting: | Direct Vent |
| Ignition: | Direct Spark |
| Trim: | Water |
| Domestic Water: | Included |
| Burner: | Modulating with 10:1 turndown ratio |
| Configuration: | Packaged |
| Notes: | Low Loss Header included 2″ venting standard 5-year parts warranty Serviceability |
Space Heating Ratings  |
Domestic Hot Water (DHW) Ratings 1 | |||||||||
| Model Number | Input (MBH) Min-Max |
Heating Capacity, MBH |
Net AHRI Water, MBH3 |
 AFUE, % |
Input (MBH) Min-Max2 |
Max Draw GPM | Min.4 | Approx. Shipping Weight (lbs) | ||
| 70°F Rise | 77°F Rise | 90°F Rise | ||||||||
| Combi Model PHNTM2136C | 13.6-120 | 112 | 97 | 95.0 | 13.6-136 | 3.7 | 3.4 | 2.9 | 0.5 | 112 |
| Combi Model PHNTM2200C | 20-150 | 141 | 123 | 95.0 | 13.6-136 | 5.2 | 4.7 | 4.0 | 0.5 | 135 |
| MODEL NUMBER | DEPTH (INCHES) | HEIGHT (INCHES) | WIDTH (INCHES) |
| PHNTM2136C | 16.3 | 29.8 | 17.8 |
| PHNTM2200C | 20.4 | 29.8 | 17.8 |
| CONNECTION SIZE | |
| SUPPLY/RETURN | 1-1/4″ MPT |
| DHW | 3/4″ MPT |
| GAS | 1/2″ MPT |
| VENT | 2″ STD (3″ w/increaser) |
