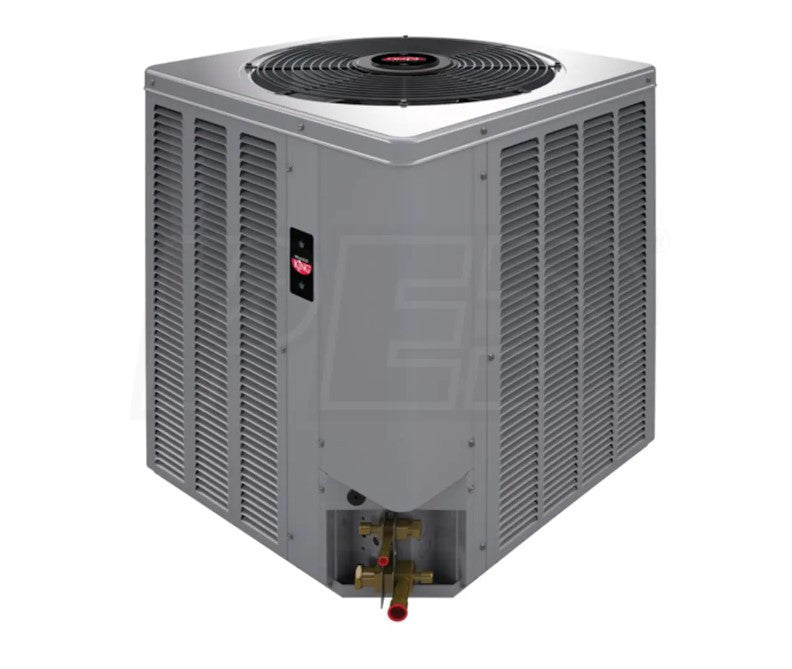

Weather King WA1424CJ1NA 2 Ton 14 SEER R410A 1 Stage Air Conditioner
Weather King WA1424CJ1NA 2 Ton 14 SEER R410A 1 Stage Air Conditioner
No reviews
Regular price
$1,069.42 USD
Regular price
Sale price
$1,069.42 USD
Unit price
/
per
Features
- Wrap-Around Coil
- The WeatherKing WA14 implements a unique wrap-around coil which improves air flow and heat transfer while reducing energy consumption.
- Solid Construction
- Made with a sturdy louvered steel cabinet, the WA14 is built to withstand inclement weather, yard hazards, and corrosion.
- Quiet Operation
- Several characteristics of the WA14 reduce sound and vibration: a motor mount/grille combination, the discharge pattern of the top grilles that minimizes air restriction, and a one-piece base pan that elevates the coil off the pad to reduce vibration.
- Control Box
- An easily accessible control box on the WA14 allows for improved serviceability.
General Information
Type
Condenser
Product Line
WeatherKing
Product Sub-line
WA14
Operating Mode
Cooling
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages
Single
DOE Regional Compliance
North and Southeast
UPC 662021501685
Performance
Capacity
2.0 Tons
Cooling BTU
24000
SEER
14.0
EER
11.5
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
15 Amps
Recommended Breaker Size
25 Amps
Dimensions
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Product Height
32 1/4 Inches
Product Width
23 5/8 Inches
Product Depth
23 5/8 Inches
Product Weight
124.5 Pounds
Shipping Weight
131.5 Pounds
Certifications
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty
5 Years
Compressor Warranty
5 Years
