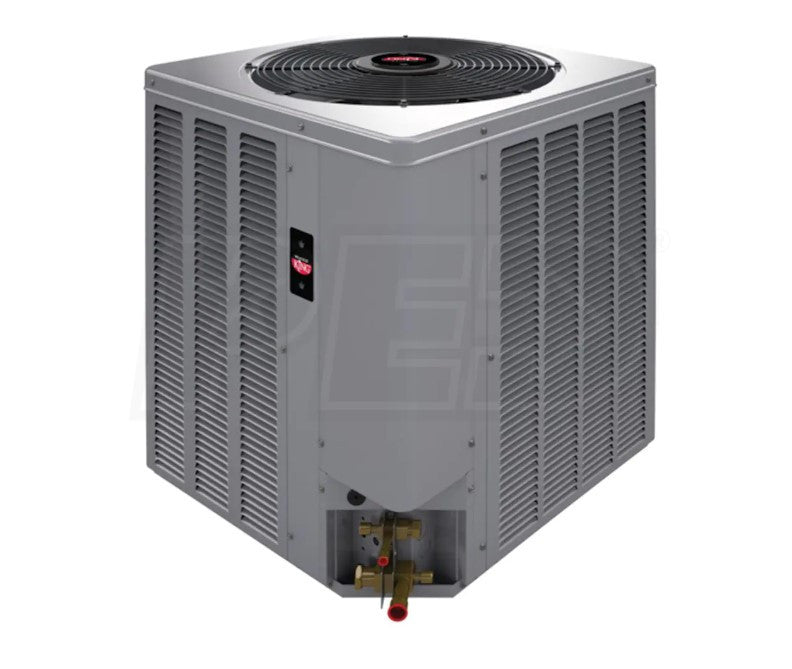

Weather King WA1442CJ1NA 3.5 Ton 14 SEER R410A 1 Stage Air Conditioner
Weather King WA1442CJ1NA 3.5 Ton 14 SEER R410A 1 Stage Air Conditioner
No reviews
Regular price
$1,604.69 USD
Regular price
Sale price
$1,604.69 USD
Unit price
/
per
Features
- Wrap-Around Coil
- The WeatherKing WA14 implements a unique wrap-around coil which improves air flow and heat transfer while reducing energy consumption.
- Solid Construction
- Made with a sturdy louvered steel cabinet, the WA14 is built to withstand inclement weather, yard hazards, and corrosion.
- Quiet Operation
- Several characteristics of the WA14 reduce sound and vibration: a motor mount/grille combination, the discharge pattern of the top grilles that minimizes air restriction, and a one-piece base pan that elevates the coil off the pad to reduce vibration.
- Control Box
- An easily accessible control box on the WA14 allows for improved serviceability.
Type
Condenser
Product Line
WeatherKing
Product Sub-line
WA14
Operating Mode
Cooling
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages
Single
DOE Regional Compliance
North and Southeast
UPC 662021501692
Performance
Capacity
3.5 Tons
Cooling BTU
42000
SEER
14.0
EER
11.5
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
23 Amps
Recommended Breaker Size
35 Amps
Dimensions
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
32 1/4 Inches
Product Width
27 5/8 Inches
Product Depth
27 5/8 Inches
Product Weight
176 Pounds
Shipping Weight
184 Pounds
Certifications
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty
5 Years
Compressor Warranty
5 Years
