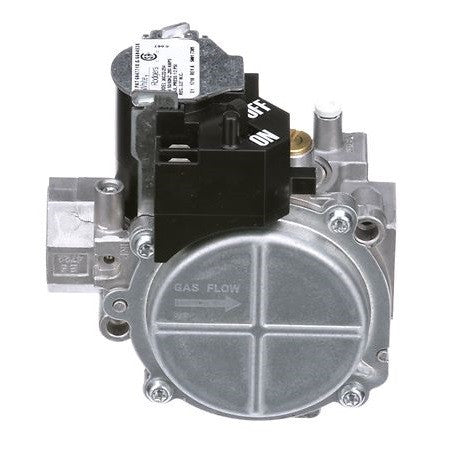

White Rodgers 36G22-254 1-Stage Fast Open 1/2x1/2 Gas Valve

White Rodgers 36G22-254 Fast Open Single-Stage Electronic Ignition 1/2"x1/2" Gas Valve

• Designed for Hot Surface and Direct Spark Ignition systems and features a compact footprint and versatile range
• Fast open, single models.
• Electric on-off switch, convenient quick connect coil terminals, and built-in pressure taps
• Tamper-resistant screws and controlled gasket compression to withstand high inlet pressures
• Mounts in any position including upside down
• CSA approved

  Specifications:
• Voltage—24 Vac 50/60Hz
• Opening Style—1 - Stage Fast Opening
• Pipe Size—1/2” X 1/2”
• Regulator Setting—3.5”
• Regulator Adjustment Range—2.5”-5.0”, Nat. Gas
• Regulator Adjustment Range—7.0”-12.0”, LP Gas
• LP Conversion Kit Included—No
• Reducer Bushing Kit—No
• Flow Direction—Straight Through
• Side Taps—No
• Inlet/Outlet Pressure Tap—Yes/Yes
• Standing Pilot with Line Interrupter—No
• HSI/DSI—Yes
• Intermittent/Proven Pilot—No
