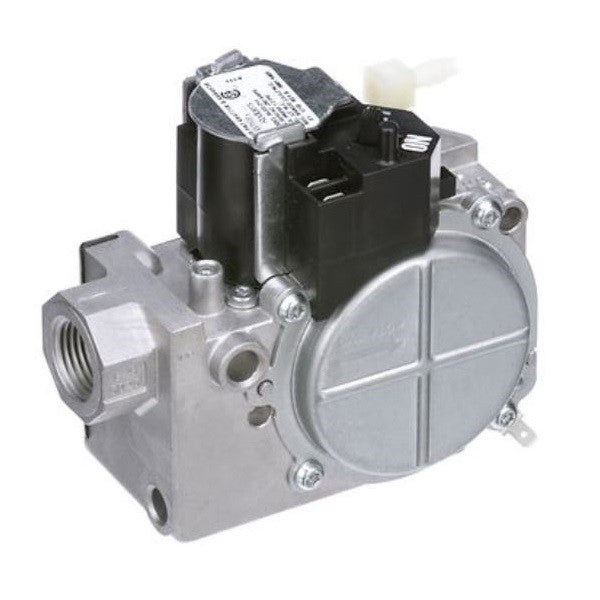

White Rodgers 36J22-214 Combination Gas Control Valve

Features:

  • Designed for Hot Surface and Direct Spark Ignition systems and features a compact footprint and versatile range
  • Fast open, single models.
  • Electric on-off switch and convenient quick connect coil terminals and built-in pressure taps
  • Tamper resistant screws and controlled gasket compression to withstand high inlet pressures
  • Mounts in any position including upside down
  • CSA approved


Specs:

Voltage—24 Vac 50/60Hz
Opening Style—1 - Stage Fast Opening
Pipe Size—1/2” X 1/2”
Regulator Setting—3.5”
Regulator Adjustment Range—2.5”-5.0”, Nat. Gas
Regulator Adjustment Range—7.0”-12.0”, LP Gas
LP Conversion Kit Included—Yes
Reducer Bushing Kit—Yes
Flow Direction—Straight Through
Side Taps—No
Inlet/Outlet Pressure Tap—Yes/Yes
Standing Pilot with Line Interrupter—No
HSI/DSI—Yes
Intermittent/Proven Pilot—No
