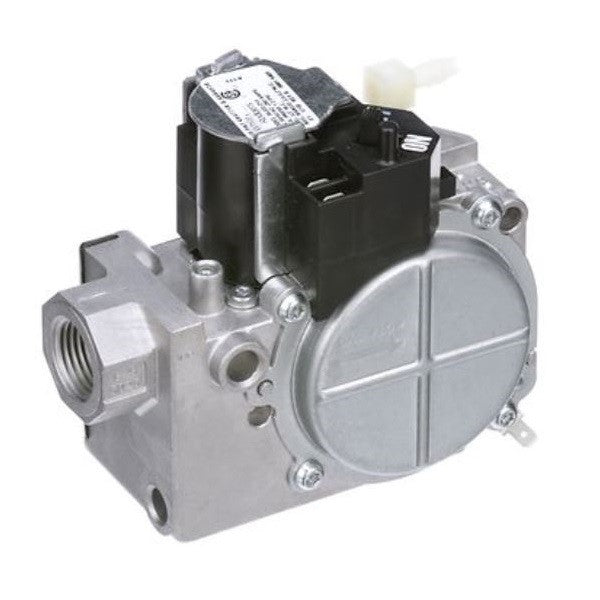

White Rodgers 36J24-614 Single Stage Slow Open Gas Valve

White Rodgers 36J24-614 Single Stage Slow Open Gas Valve

Electronic Ignition Gas Valve. The Versatile 36J Series Combination Gas Valve covers a wide range of applications. Designed for use with common ignition systems (HSI/DSI). 36J is our most compact footprint Combination Gas Valve.

Features
Designed for Hot Surface and Direct Spark Ignition systems and features a compact footprint and versatile range
Slow open, single stage model
Electric on-off switch and convenient quick connect coil terminals and built-in pressure taps
Tamper resistant screws and controlled gasket compression to withstand high inlet pressures
Mounts in any position including upside down
CSA approved

Specifications
Voltage—24 Vac 50/60Hz
Opening Style—1 - Stage Slow Opening
Pipe Size—1/2” X 1/2”
Regulator Setting—3.5”
Regulator Adjustment Range—2.5”-5.0”, Nat. Gas
Regulator Adjustment Range—7.0”-12.0”, LP Gas
LP Conversion Kit Included—Yes
Reducer Bushing Kit—No
Flow Direction—90° Bottom Outlet
Side Taps—No
Inlet/Outlet Pressure Tap—Yes/Yes
Standing Pilot with Line Interrupter—No
HSI/DSI—Yes
Intermittent/Proven Pilot—No
