White Rodgers 36J55-614 2 Stage Slow Open Gas Valve
White Rodgers 36J55-614 2 Stage Slow Open Gas Valve
No reviews
Regular price
$114.99 USD
Regular price
Sale price
$114.99 USD
Unit price
/
per

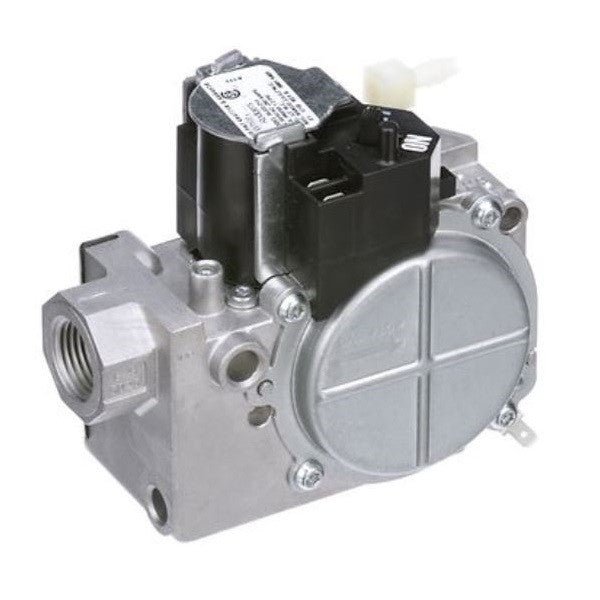

White Rodgers 36J55-614
Electronic Ignition Gas Valve. The Versatile 36J Series Combination Gas Valve covers a wide range of applications. Designed for use with common ignition systems (HSI/DSI). 36J is our most compact footprint Combination Gas Valve.
Features
Designed for Hot Surface and Direct Spark Ignition systems and features a compact footprint and versatile range
Slow open, two stage model
Electric on-off switch and convenient quick connect coil terminals and built-in pressure taps
Tamper resistant screws and controlled gasket compression to withstand high inlet pressures
Mounts in any position including upside down
CSA approved
Specifications
Voltage—24 Vac 50/60Hz
Opening Style—2 - Stage Slow Opening
Pipe Size—1/2” X 1/2”
Regulator Setting—1.5” Low3.5” High
Regulator Adjustment Range—1.0”-4.0” Low, 2.0”-5.0” High, Nat. Gas
Regulator Adjustment Range—4.0”-10.0” Low, 6.0”-12.0” High, LP Gas
LP Conversion Kit Included—Yes
Reducer Bushing Kit—No
Flow Direction—90° Bottom Outlet
Side Taps—No
Inlet/Outlet Pressure Tap—Yes/Yes
Standing Pilot with Line Interrupter—No
HSI/DSI—Yes
Intermittent/Proven Pilot—No
