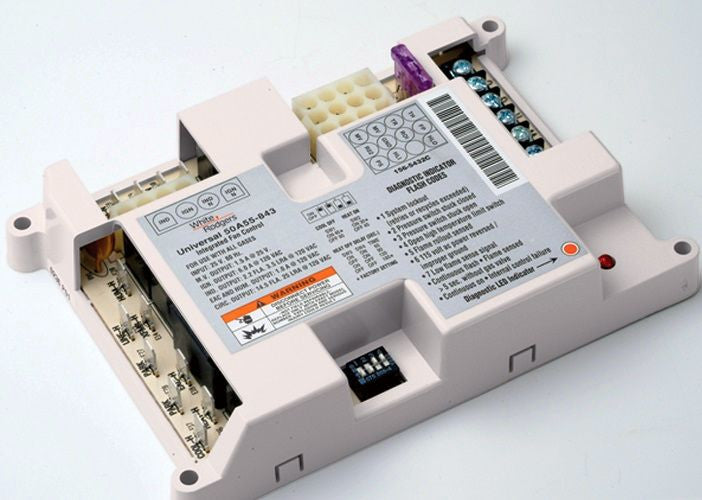

White-Rodgers 50A55-843 Universal HSI Control Module

White Rodgers 50A55-843 Universal HSI Control Module

Controls Gas Valve, Igniter, Blower, Inducer, Humidifier and Air Cleaner.

• Includes flash code diagnostics
• Fused to protect low voltage system transformers
• Includes mounting hole template
• Input Voltage- 25 VAC 50/60Hz
• Adjustable Blower Relay
• Lockout time: 269 Seconds
• Ignitor Warm-Up Time: 3 Seconds
• Ignition Retries: 2

Replaces:

031-00662, 031-01266000, 031-01266-000, 10207701, 10207702, 10207703, 10207710, 12L4201, 1380-686, 1380-699, 50A50-110, 50A50-111, 50A50-112, 50A50-113, 50A50-130, 50A50-131, 50A50-142, 50A50-143, 50A50-205, 50A50-206, 50A50-207, 50A50-208, 50A50-209, 50A50-210, 50A50-215, 50A50-216, 50A50-229, 50A50-230, 50A50-240, 50A50-241, 50A50-245, 50A50-285, 50A50-286, 50A50-288, 50A50-295, 50A50-296, 50A50-298, 50A50-405, 50A50-406, 50A50-407, 50A50-408, 50A50-438, 50A50-472, 50A50-473, 50A50-474, 50A50-475, 50A50-571, 50A55-143, 50A55-241, 50A55-245, 50A55-250, 50A55-285, 50A55-286, 50A55-288, 50A55-438, 50A55-474, 50A55-571, 50A55-843, D330927P01, D330930P01, D330934P01, D340035P01, D340354P01, D340774P01
