White Rodgers 50M56U-751 Carrier Single Stage HSI Integrated

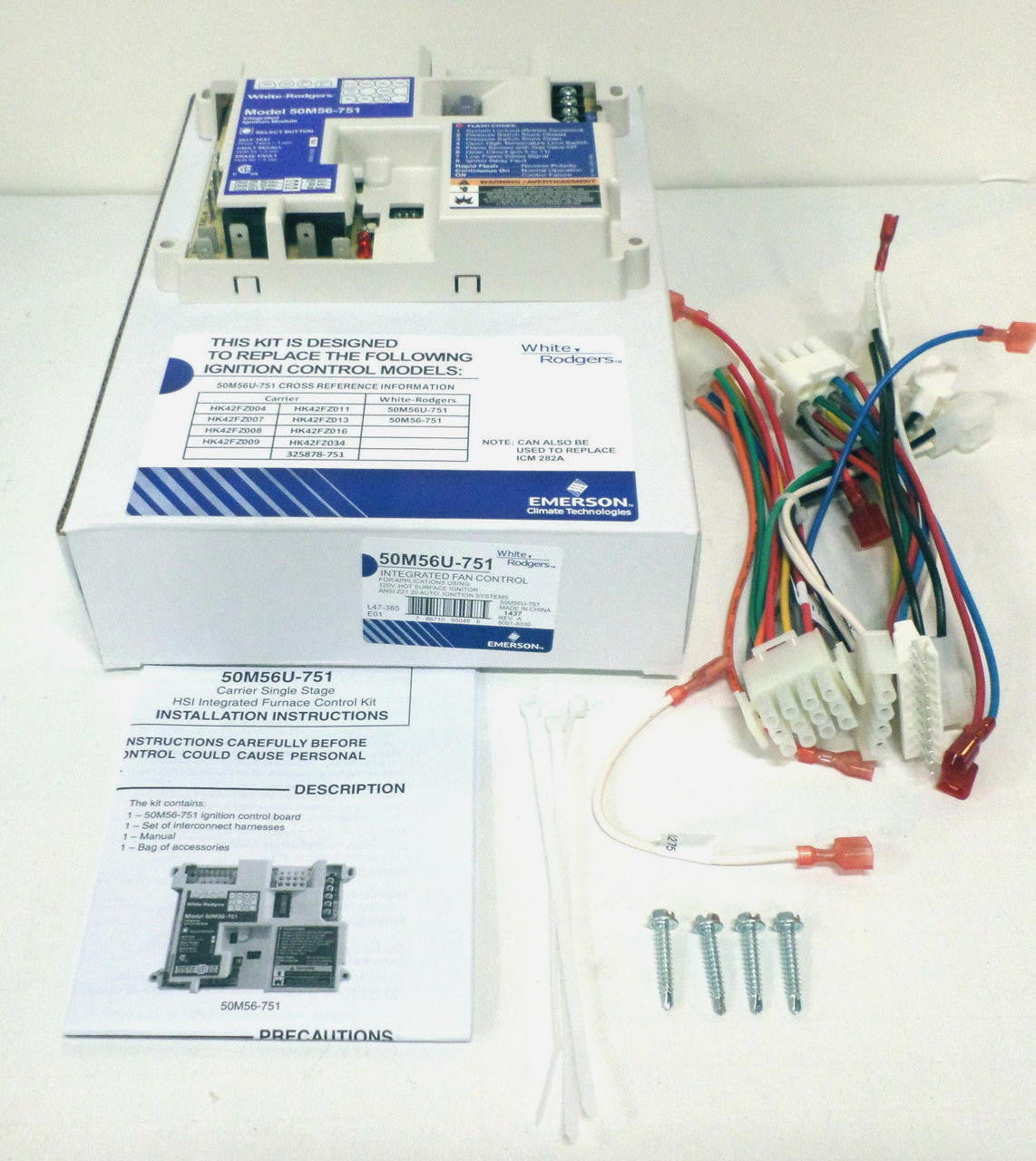

White Rodgers 50M56U-751 Carrier Single Stage HSI Integrated Furnace Control Kit

The 50M56U-751 kit is a Single Stage HSI Integrated Furnace Control kit for Carrier.

Kit Includes:

• 50M56-751 ignition control board
• Set of interconnect harnesses
• Manual
• Bag of accessories

Features:

• System Diagnostic LED with Fault Recall
• Low-Speed Continuous Fan Option
• 120 VAC Ignitor Output
• 120 or 24 VAC Humidifier Output
• 120 VAC Electronic Air Cleaner Output
• Self-Test Installation Routine
• 3 Fan Speeds - cool, low heat & high heat speeds.
• Universal nitride ignitor kit - 21D64-2.
• 9 quick-select/quick-connect wiring harnesses.
• Red LED diagnostic flash codes with stored fault recall.
• Low voltage fuse protection, 3A replaceable automotive type.
• Humidifier & Electronic Air Cleaner connections (optional).

Description

NEW-Direct Replacement Integrated Furnace Control For Carrier Single Stage HSI Controls With 120V Ignitors.
Replaces 325878-751, HK42FZ004, HK42FZ007, HK42FZ008, HK42FZ009, HK42FZ011, HK42FZ013, HK42FZ016, HK42FZ034, 50M56-751, ICM282A
